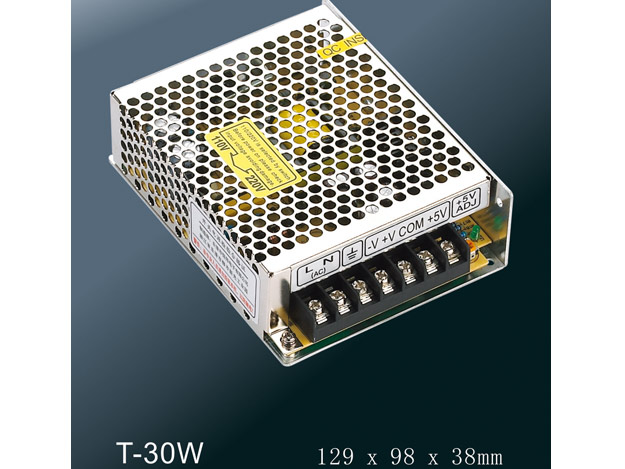

T-30W series triple output switching power supply
Features：
·AC input voltage range selected by switch
·Small volume，low weight，high efficiency
·Protections：short circuit/over load
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
|
Model |
T-30A |
T-30B | ||||||
|
output |
DC voltage |
CH1:+5V |
CH2:+12V |
CH3:-5V |
CH1:+5V |
CH2:+12V |
CH3:-12V | |
|
Voltage tolerance |
±2% |
+4%~-6% |
+5%~-10% |
±2% |
+4%~-6% |
+5%~-10% | ||
|
Rated current |
3A |
1A |
0.5A |
3A |
1A |
0.5A | ||
|
Current range |
0.6~3A |
0.1~1A |
0.1~0.5A |
0.6~3A |
0.1~1A |
0.1~0.5A | ||
|
Rated power |
30W |
33W | ||||||
|
Ripple&noise |
80mvp-p |
100mvp-p |
100mvp-p |
80mvp-p |
100mvp-p |
100mvp-p | ||
|
DCvoltage ADJ.range |
CH1:-9%~+10% | |||||||
|
input |
Voltage range |
90~132VAC/180~264VAC(selected by switch)，255~373VDC | ||||||
|
frequency |
47~63HZ | |||||||
|
AC current |
0.8A/115VAC，0.45A/230VAC | |||||||
|
efficiency |
73% |
74% | ||||||
|
Inrush current |
Cold start current 18A/115VAC，36A/230VAC | |||||||
|
Leakage current |
< 2mA/240VAC | |||||||
|
protection |
overload |
Rated output power110%~150 start over load protection | ||||||
|
protection type ：part layer type current limit ，auto-recovery after fault condition is removed | ||||||||
|
----- |
----- | |||||||
|
----- | ||||||||
|
environment |
Working temp,humidity |
-10℃~+60℃，20%~90%RH | ||||||
|
Storagetemp,humidity |
-20℃~+85℃，10%~95%RH non-condensing | |||||||
|
Withstand vibration |
10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes | |||||||
|
safety |
Withstand voltage |
I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | ||||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC | |||||||
|
Fitstandard |
Safety standard |
Fit UL1012 | ||||||
|
EMC standard |
符合EN55022，CLASSA | |||||||
|
others |
Dimension |
129*98*38mm (L*W*H) | ||||||
|
Weight/packing |
0.4kg/45pcs/19kg/0.034m³/1.2CUFT | |||||||
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||||||
