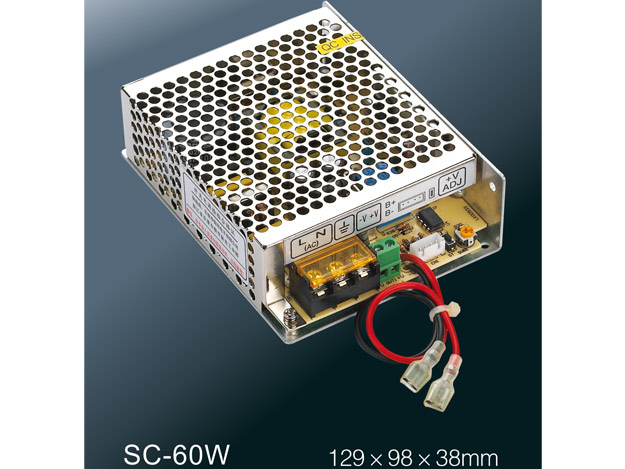

SC-60W series UPS function monitor power supply
Features：·universal AC input
·Small volume，low weight，high efficiency
·Protections：short circuit/over load
·Indicator for power on/charge/normal(LED)
·100% full load burn-in test
·Battery protection at low voltage
·2 Year warranty
|
Model |
SC-60-12 |
SC-60-24 | |||
|
output |
DC voltage |
CH1:13.8V |
CH1:13.4V |
CH1:27.6V |
CH2:26.5V |
|
Voltage tolerance |
±1% |
----- |
±1% |
----- | |
|
Rated current |
4.0A |
0.35A |
2.0A |
0.25A | |
|
Current range |
0~4A |
----- |
0~2A |
----- | |
|
Rated power |
59.9W |
61.8W | |||
|
Ripple&noise |
100mvp-p |
----- |
100mvp-p |
----- | |
|
DCvoltage ADJ.range |
CH1:11.3~14.9V |
CH1:21.3~29.8V | |||
|
input |
Voltage range |
90~264VAC，127~370VDC | |||
|
frequency |
47~63HZ | ||||
|
AC current |
1.6A/115VAC，0.8A/230VAC | ||||
|
efficiency |
81% |
83% | |||
|
Inrush current |
Cold start current 25A/115VAC，45A/230VAC | ||||
|
Leakage current |
< 1mA/240VAC | ||||
|
protection |
Over load |
Rated output power110%~150% start over load protection | |||
|
protection mode： AC charging mode:hiccup mode auto-recovery after fault condition is removed | |||||
|
Battery protection At low voltage |
9.5~11V |
20~22V | |||
|
protection mode：cutoff output | |||||
|
Function |
UPS introduction |
long-term online floating charge to battery,high charging efficiency,battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life,AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS,Meet the user's emergency needs | |||
|
environment |
Working temp,humidity |
-10℃~+60℃，20%~90%RH | |||
|
Storagetemp,humidity |
-20℃~+85℃，10%~95%RH non-condensing | ||||
|
Withstand vibration |
10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes | ||||
|
safety |
Withstand voltage |
I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC | ||||
|
Fitstandard |
Safety standard |
Compliance to UL60950-1 | |||
|
EMC standard |
Compliance to EN55022，CLASSB | ||||
|
others |
Dimension |
129*98*38mm (L*W*H) | |||
|
Weight/packing |
0.52kg/45pcs/24kg/0.034m³/1.2CUFT | ||||
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||
