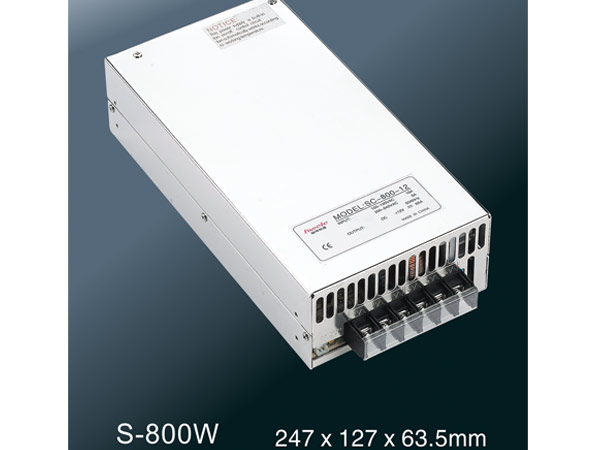

S-800W series normal single switching power supply
Features：·AC input voltage range selected by switch
·Small volume，low weight，high efficiency
·Protections：short circuit/over load/over voltage/over temp
·Built-in cooling DC fan
·Can be used parallel connection
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
|
Model |
S-800-12 |
S-800-15 |
S-800-24 |
S-800-27 |
S-800-36 |
S-800-48 | |
|
output |
DC voltage |
12V |
15V |
24V |
27V |
36V |
48V |
|
Voltage tolerance |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% | |
|
Rated current |
66A |
53A |
33A |
29.5A |
22A |
16.5A | |
|
Current range |
0~66A |
0~53A |
0~33A |
0~29.5A |
0~22A |
0~16.5A | |
|
Rated power |
792W |
795W |
792W |
796W |
792W |
792W | |
|
Ripple&noise |
200mvp-p |
200mvp-p |
240mvp-p |
240mvp-p |
300mvp-p |
300mvp-p | |
|
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
±10% |
±10% |
±10% | |
|
input |
Voltage range |
90~132VAC/180~264VAC(selected by switch)，255~373VDC | |||||
|
frequency |
47~63HZ | ||||||
|
AC current |
16A/115VAC，8A/230VAC | ||||||
|
efficiency |
80% |
81% |
82% |
82% |
83% |
84% | |
|
Inrush current |
Cold start current 25A/115VAC，50A/230VAC | ||||||
|
Leakage current |
< 3.5mA/240VAC | ||||||
|
protection |
overload |
Rated output power115%~135% start over load protection | |||||
|
protection type：cutoff output，recovery after restart power | |||||||
|
Over voltage |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
33.2~35.6V |
42.6~44.2V |
54.8~56.6V | |
|
protection type：cutoff output，recovery after restart power | |||||||
|
Over temperature |
detect on heatsink of power transistor≥85℃ start over temperature protection | ||||||
|
Protection mode：cutoff output，auto-recovery after temperature become normal | |||||||
|
environment |
Working temp,humidity |
-10℃~+60℃，20%~90%RH | |||||
|
Storagetemp,humidity |
-20℃~+85℃，10%~95%RH non-condensing | ||||||
|
Withstand vibration |
10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes | ||||||
|
safety |
Withstand voltage |
I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC | ||||||
|
Fitstandard |
Safety standard |
Fit UL1012 | |||||
|
EMC standard |
符合EN55022，CLASSA | ||||||
|
others |
Dimension |
247*127*63.5mm (L*W*H) | |||||
|
Weight/packing |
2.1kg/9pcs/20kg/0.029m³/1.04CUFT | ||||||
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||
