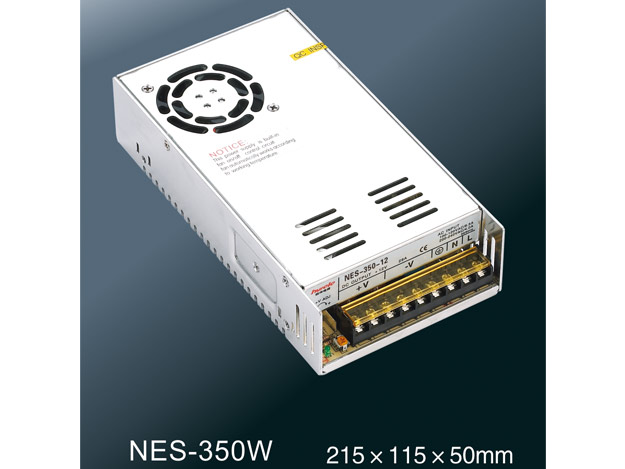

Model

NES-350-5

NES-350-12

NES-350-15

NES-350-24

NES-350-48

output

DC voltage

5V

12V

15V

24V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

Rated current

60A

29A

23.3A

14.6A

7.3A

Current range

0~60A

0~29A

0~23.3A

0~14.6A

0~7.3A

Rated power

300W

348W

349.5W

350.4W

350.4W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

150mvp-p

240mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch)，255~373VDC

frequency

47~63HZ

AC current

7A/115VAC，4A/230VAC

efficiency

80%

84%

84%

86%

87%

Inrush current

Cold start current 40A/115VAC，60A/230VAC

Leakage current

< 3.5mA/240VAC

protection

overload

Rated output power105%~135%  start over load protection

Protection type：hiccup mode，auto-recovery after fault condition is removed

Over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

54.8~56.6V

Protection type：hiccup mode，auto-recovery after fault condition is removed

Over temperature

≥50℃fan on，≤45℃fan off，≥95℃±5℃ start over temperature protection

Protection mode：cutoff output，auto-recovery after temperature become normal

environment

Working temp,humidity

-20℃~+60℃，20%~90%RH

Storagetemp,humidity

-40℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

符合EN55022，CLASSA

others

Dimension

215*115*50mm (L*W*H)

Weight/packing

1.0kg/24pcs/25kg/0.049 m³/1.72CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
