Model

NES-200-5

NES-200-12

NES-200-15

NES-200-24

NES-200-48

output

DC voltage

5V

12V

15V

24V

48V

Voltage tolerance

±2%

±1%

±1%

±1%

±1%

Rated current

40A

17A

13.4A

8.8A

4.4A

Current range

0~40A

0~17A

0~13.4A

0~8.8A

0~4.4A

Rated power

200W

204W

201W

211.2W

211.2W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

150mvp-p

240mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

input

Voltage range

90~132VAC/180~264VAC(selected by switch)，255~373VDC

frequency

47~63HZ

AC current

4.5A/115VAC，2.5A/230VAC

efficiency

79%

85%

85%

87%

88%

Inrush current

Cold start current 40A/115VAC，55A/230VAC

Leakage current

< 2mA/240VAC

protection

overload

Rated output power110%~150%  start over load protection

protection type：hiccup mode，auto-recovery after fault condition is removed

over voltage

6.8~8.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

54.8~56.6V

protection type：hiccup mode，auto-recovery after fault condition is removed

over temperature

TSW1detect on heatsink of power transistor≥95℃±5℃, start over temperature protection

protection type：hiccup mode，auto-recovery after temperature become normal

environment

Working temp,humidity

-20℃~+60℃，20%~90%RH

Storagetemp,humidity

-40℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P：3KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

符合EN55022，CLASSA

others

Dimension

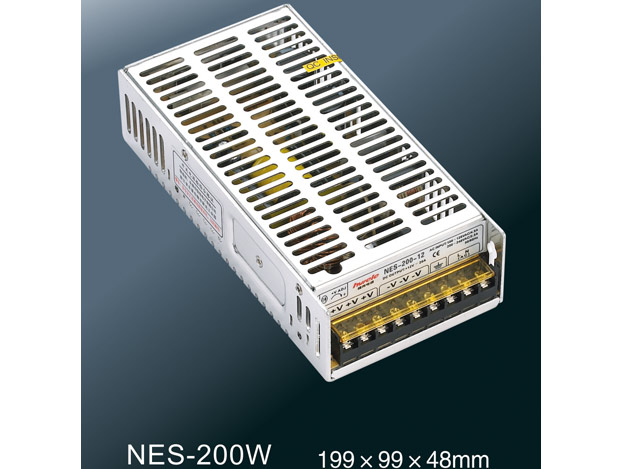

199*99*48mm (L*W*H)

Weight/packing

0.7kg/24pcs/17.5kg/0.034 m³/1.2CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
