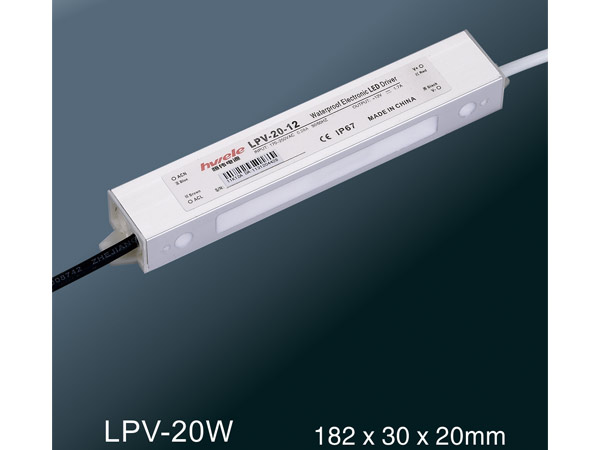

LPV-20W series LED constant voltage waterproof switching power supply
Features：·Constant voltage style power supply
·170～264VAC AC input
·Small volume，low weight，high efficiency
·Protections：short circuit/over load/over voltage/over temp
·Cooling by free air convection
·Fully encapsulated with IP67 level
·100% full load burn-in test
·1 Year warranty
|
Model |
LPV-20-12 |
LPV-20-24 |
LPV-20-36 |
------ | |
|
output |
DC voltage |
12V |
24V |
36V |
------ |
|
Voltage tolerance |
±1% |
±1% |
±1% |
------ | |
|
Rated current |
1.7A |
0.8A |
0.6A |
------ | |
|
Current range |
0~1.7A |
0~0.8A |
0~0.6A |
------ | |
|
Rated power |
20.4W |
19.2W |
21.6W |
------ | |
|
Ripple&noise |
100mvp-p |
100mvp-p |
150mvp-p |
------ | |
|
input |
Voltage range |
170~264VAC，235~373VDC | |||
|
Frequency |
47~63HZ | ||||
|
AC current |
0.28A/230VAC | ||||
|
Efficiency |
78% |
80% |
82% |
------ | |
|
Inrush current |
Cold start current 30A/230VAC | ||||
|
Leakage current |
<0.5mA/240VAC | ||||
|
protection |
Over load |
Rated output power 105%~135%start over load protection | |||
|
Protection type：hiccup mode，auto-recovery after fault condition is removed | |||||
|
Over voltage |
15.6~17.8V |
30.6~33.2V |
42.6~44.2V |
------ | |
|
Protection type：hiccup mode，auto-recovery after fault condition is removed | |||||
|
Over temperature |
when temperature of transistor inner node is over 150℃，start over temperature protection | ||||
|
Protection mode：cutoff output，auto-recovery after temperature become normal | |||||
|
environment |
Workingtemp,humidity |
-10℃~+60℃，20%~90%RH | |||
|
Storage temp.humidity |
-20℃~+85℃，10%~95%RH non condensing | ||||
|
Withstand vibration |
10~500HZ，2G 10min/1cycle，period for 60minutes，each axes | ||||
|
safety |
Withstand voltage |
I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||
|
Isolated resistance |
I/P-O/P、I/P-FG、O/P-FG：100M ohms/500VDC | ||||
|
Fits tandard |
Safety standard |
Fit UL1012，IP67 protect level | |||
|
EMC standard |
Fit EN55022，CLASSA | ||||
|
Others |
Dimension |
182*30*20mm (L*W*H) | |||
|
Weight/packing |
0.22kg/100pcs/23kg/0.033 m³/1.18CUFT | ||||
|
Note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||
