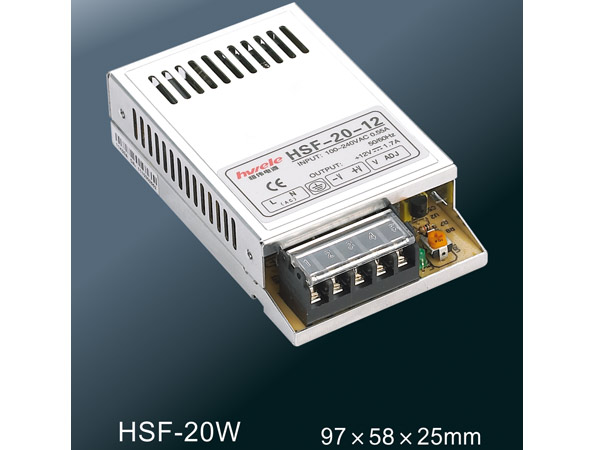

Model

HSF-20-5

HSF-20-9

HSF-20-12

HSF-20-15

HSF-20-24

output

DC voltage

5V

9V

12V

15V

24V

Voltage tolerance

±1%

±1%

±1%

±1%

±1%

Rated current

4A

2.2A

1.7A

1.4A

0.8A

Current range

0~4A

0~2.2A

0~1.7A

0~1.4A

0~0.8A

Rated power

20W

19.8W

20.4W

21W

19.2W

Ripple&noise

80mvp-p

120mvp-p

120mvp-p

120mvp-p

120mvp-p

DCvoltage ADJ.range

-9%~+10%

±10%

±10%

±10%

±10%

input

Voltage range

90~264VAC，125~373VDC

frequency

47~63HZ

AC current

0.45A/115VAC，0.25A/230VAC

efficiency

75%

78%

78%

78%

80%

Inrush current

Cold start current 15A/115VAC，30A/230VAC

Leakage current

< 0.5mA/240VAC

protection

overload

Rated output power115%~135%  start over load protection

protection type：hiccup mode，auto-recovery after fault condition is removed

Over voltage

6.8~8.2V

12.6~14.2V

15.6~17.8V

18.6~20.8V

30.6~33.2V

protection type：hiccup mode，auto-recovery after fault condition is removed

Over temperature

When temperature of transistor inner node is over 150℃, start over temperature protection

protection type：hiccup mode，auto-recovery after temperature become normal

environment

Working temp,humidity

-10℃~+60℃，20%~90%RH

Storagetemp,humidity

-20℃~+85℃，10%~95%RH non-condensing

Withstand vibration

10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes

safety

Withstand voltage

I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1012

EMC standard

符合EN55022，CLASSA

others

Dimension

97*58*25mm (L*W*H)

Weight/packing

0.11kg/160pcs/18.5kg/0.033 m³/1.17CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
