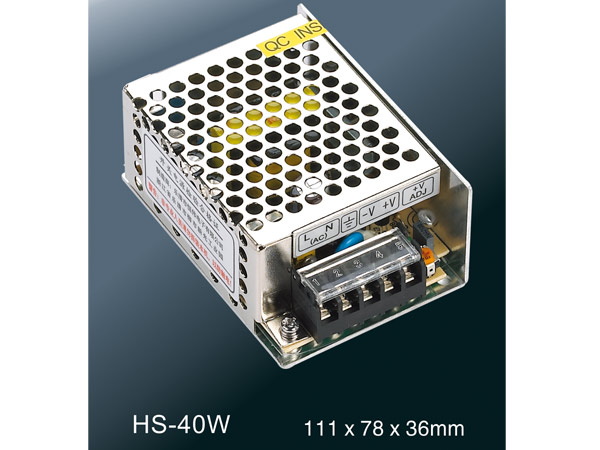

HS-40W series compact single switching power supply
Features：·170～264VAC AC input
·Small volume，low weight，high efficiency
·Protections：short circuit/over load/over voltage/over temp
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
|
Model |
HS-40-12 |
HS-40-15 |
HS-40-24 | |
|
output |
DC voltage |
12V |
15V |
24V |
|
Voltage tolerance |
±1% |
±1% |
±1% | |
|
Rated current |
3.4A |
2.8A |
1.7A | |
|
Current range |
0~3.4A |
0~2.8A |
0~1.7A | |
|
Rated power |
40.8W |
42W |
40.8W | |
|
Ripple&noise |
120mvp-p |
120mvp-p |
150mvp-p | |
|
DCvoltage ADJ.range |
±10% |
±10% |
±10% | |
|
input |
Voltage range |
170~264VAC，235~373VDC | ||
|
frequency |
47~63HZ | |||
|
AC current |
0.55A/230VAC | |||
|
efficiency |
78% |
78% |
80% | |
|
Inrush current |
Cold start current 30A/230VAC | |||
|
Leakage current |
< 1mA/240VAC | |||
|
protection |
overload |
Rated output power115%~135% start over load protection | ||
|
protection type：hiccup mode，auto-recovery after fault condition is removed | ||||
|
over voltage |
Rated output power145%～170% | |||
|
protection type：hiccup mode，auto-recovery after fault condition is removed | ||||
|
over temp |
When temperature of transistor inner node is over 150℃,Start over temp protection | |||
|
protection type：hiccup mode，auto-recovery after temperature become normal | ||||
|
environment |
Working temp,humidity |
-10℃~+60℃，20%~90%RH | ||
|
Storagetemp,humidity |
-20℃~+85℃，10%~95%RH non-condensing | |||
|
Withstand vibration |
10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes | |||
|
safety |
Withstand voltage |
I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | ||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC | |||
|
Fitstandard |
Safety standard |
Fit UL1012 | ||
|
EMC standard |
符合EN55022，CLASSA | |||
|
others |
Dimension |
84*58*38mm (L*W*H) | ||
|
Weight/packing |
0.17kg/80pcs/14.5kg/0.024m³/0.87CUFT | |||
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||
