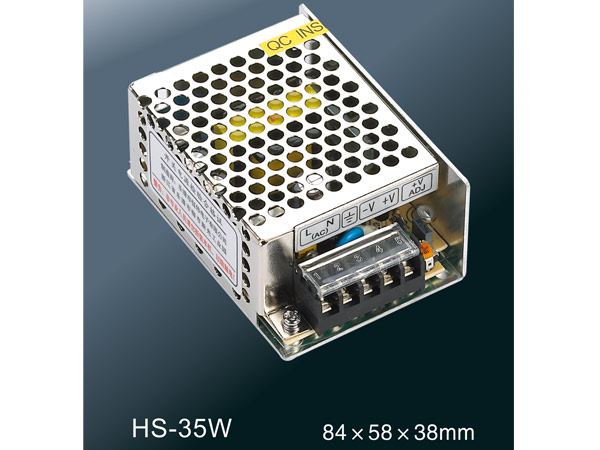

HS-35W series compact single switching power supply
Features:·170~264VAC AC input
·Small volume,low weight,high efficiency
·Protections:short circuit/over load/over voltage/over temp
·cooling by free air convection
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
Model |
HS-35-5 |
HS-35-12 |
HS-35-15 |
HS-35-24 | |
output |
DC voltage |
5V |
12V |
15V |
24V |
Voltage tolerance |
±2% |
±1% |
±1% |
±1% | |
Rated current |
5A |
3A |
2.4A |
1.5A | |
Current range |
0~5A |
0~3A |
0~2.4A |
0~1.5A | |
Rated power |
25W |
36W |
36W |
36W | |
Ripple&noise |
80mvp-p |
120mvp-p |
120mvp-p |
120mvp-p | |
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
±10% | |
input |
Voltage range |
170~264VAC,235~373VDC | |||
frequency |
47~63HZ | ||||
AC current |
0.45A/230VAC | ||||
efficiency |
76% |
78% |
78% |
80% | |
Inrush current |
Cold start current 30A/230VAC | ||||
Leakage current |
< 1mA/240VAC | ||||
protection |
overload |
Rated output power115%~135% start over load protection | |||
protection type:hiccup mode,auto-recovery after fault condition is removed | |||||
over voltage |
Rated output power145%~170% | ||||
protection type:hiccup mode,auto-recovery after fault condition is removed | |||||
over temp |
When temperature of transistor inner node is over 150℃,Start over temp protection | ||||
protection type:hiccup mode,auto-recovery after temperature become normal | |||||
environment |
Working temp,humidity |
-10℃~+60℃,20%~90%RH | |||
Storagetemp,humidity |
-20℃~+85℃,10%~95%RH non-condensing | ||||
Withstand vibration |
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes | ||||
safety |
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC | ||||
Fitstandard |
Safety standard |
Fit UL1012 | |||
EMC standard |
符合EN55022,CLASSA | ||||
others |
Dimension |
84*58*38mm (L*W*H) | |||
Weight/packing |
0.17kg/80pcs/14.5kg/0.024m³/0.87CUFT | ||||
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
