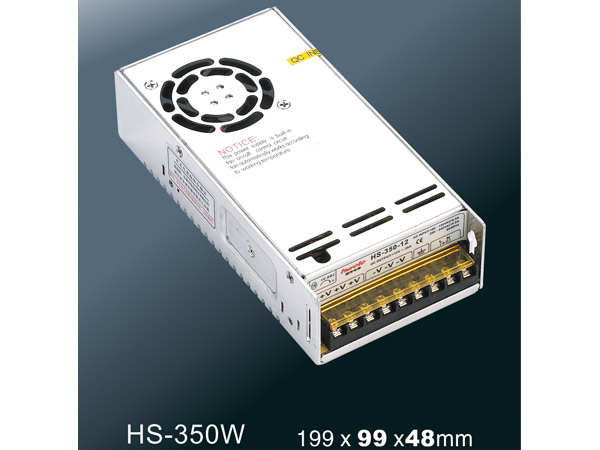

HS-350W series compact single switching power supply
Features：·AC input voltage range selected by switch
·Small volume，low weight，high efficiency
·Protections：short circuit/over load/over voltage/over temp
·Built-in cooling DC fan
·Cooling fan ON-OFF auto control
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
|
Model |
HS-350-5 |
HS-350-12 |
HS-350-15 |
HS-350-24 |
HS-350-27 |
HS-350-48 | |
|
output |
DC voltage |
5V |
12V |
15V |
24V |
27V |
48V |
|
Voltage tolerance |
±2% |
±1% |
±1% |
±1% |
±1% |
±1% | |
|
Rated current |
50A |
29A |
23A |
14.6A |
13 |
7.3 | |
|
Current range |
0~50A |
0~29A |
0~23A |
0~14.6A |
0~13A |
0~5.2A | |
|
Rated power |
250W |
348W |
345W |
350.4W |
351W |
350.4W | |
|
Ripple&noise |
150mvp-p |
150mvp-p |
150mvp-p |
180mvp-p |
180mvp-p |
200mvp-p | |
|
DCvoltage ADJ.range |
-9%~+10% |
±10% |
±10% |
±10% |
±10% |
±10% | |
|
input |
Voltage range |
90~132VAC/180~264VAC(selected by switch)，255~373VDC | |||||
|
frequency |
47~63HZ | ||||||
|
AC current |
6.5A/115VAC，4.0A/230VAC | ||||||
|
efficiency |
80% |
82% |
82% |
84% |
84% |
85% | |
|
Inrush current |
Cold start current 25A/115VAC，50A/230VAC | ||||||
|
Leakage current |
< 3.5mA/240VAC | ||||||
|
protection |
overload |
Rated output power110%~135% start over load protection | |||||
|
protection type：hiccup mode，auto-recovery after fault condition is removed | |||||||
|
Over voltage |
6.8~8.2V |
15.6~17.8V |
18.6~20.8V |
30.6~33.2V |
33.2~35.6V |
54.8~56.6V | |
|
Protection type：hiccup mode，auto-recovery after fault condition is removed | |||||||
|
Over temperature |
TSW1detect on heatsink of power transistor≥85℃±5℃, start over temperature protection | ||||||
|
protection type：hiccup mode，auto-recovery after temperature become normal | |||||||
|
environment |
Working temp,humidity |
-10℃~+60℃，20%~90%RH | |||||
|
Storagetemp,humidity |
-20℃~+85℃，10%~95%RH non-condensing | ||||||
|
Withstand vibration |
10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes | ||||||
|
safety |
Withstand voltage |
I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC | ||||||
|
Fitstandard |
Safety standard |
Fit UL1012 | |||||
|
EMC standard |
符合EN55022，CLASSA | ||||||
|
others |
Dimension |
199*99*48mm (L*W*H) | |||||
|
Weight/packing |
0.8kg/24pcs/20kg/0.034 m³/1.2CUFT | ||||||
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||
