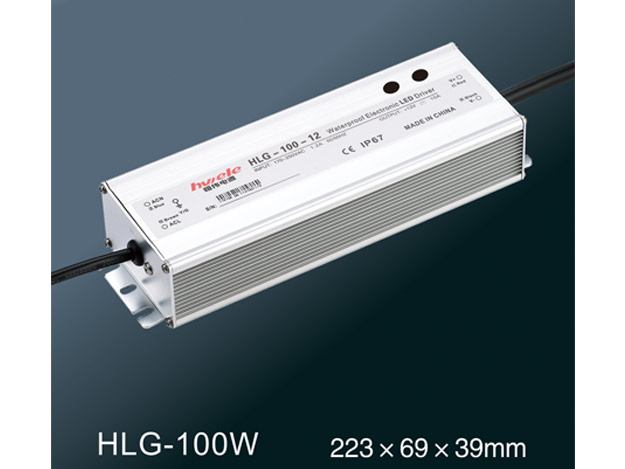

HLG-100W series   Full function adjustable waterproof power supply

Features:·universal AC input

        ·BUilt-in power factor correction

        ·Protections:short circuit/over load/over voltage/over temp

        ·Cooling by free air convection

        ·OCP point adjustable through output cable or internal potentiometer

        ·IP67/65 design for indoor or outdoor installations

        ·Suitble for LED lighting and moving sign applications

        ·3Year warranty

Model

HLG-100-12

HLG-100-20

HLG-100-24

HLG-100-36

HLG-100-48







output

DC voltage

12V

20V

24V

36V

48V

Constant current region

6~12V

10~20V

12~24V

18~36V

24~48V

Rated current

5A

4.8A

4A

2.65A

2A

Rated power

60W

96W

96W

95.4W

96W

Ripple&noise

150mvp-p

150mvp-p

150mvp-p

200mvp-p

200mvp-p

Voltage ADJ range

10.8~13V

17~22V

22~27V

33~40V

43~53V

Current  ADJ range

Can be adjusted by internal potentiometer or through output cable



3~5A

3~4.8A

2.5~4A

1.7~2.65A

1.2~2A





input

Voltage range

90~264VAC,47~63HZ ,127~370VDC

AC current

1.2A/115VAC,0.55A/230VAC

Power factor

PF>0.95/230VAC,PF>0.98/115VAC Start overload protection

efficiency

90%

93%

93%

93%

93%

Inrush current

Cold start current 35A/115VAC,75A/230VAC

Leakage current

< 0.75mA/240VAC



protection

Over current

95%~108%

protection type :Constant current limiting ,auto-recovery after fault condition is removed

Short circuit

Hiccup mode,recovers  automatically  after fault condition is remove

Over voltage

14~17V

23~27V

28~34V

41~46V

54~60V

protection type:Shut down o/p voltage re-power on to recover

Over temperature

100℃±10℃(RTH2)

protection type:Shut down o/p voltage re-power on to recover

environment

Working temp,humidity

-20℃~+60℃,20%~90%RH

Storagetemp,humidity

-40℃~+85℃,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC

Fitstandard

Safety standard

Fit UL1310 CLASS2,TUV EN61347-1,EN61347-2-13, IP65approved

EMC standard

Fit EN55015,EN61000-3-2 ClassC(>60%load):EN61000-3-3

others

Dimension

223*69*39mm (L*W*H)

Weight/packing

1kg/20pcs/21kg/0.03m³/1.07CUFT

note

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.
