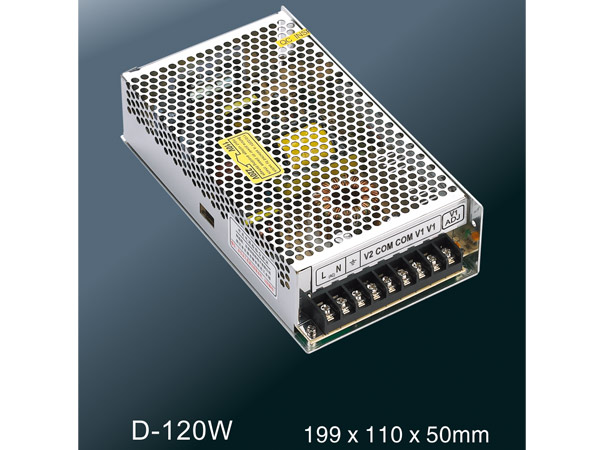

D-120W series normal dual switching power supply
Features：·AC input voltage range selected by switch
·Small volume，low weight，high efficiency
·Protections：short circuit/over load/ over voltage
·LED indicator for power on
·100% full load burn-in test
·2 Year warranty
|
Model |
D-120A |
D-120B |
D-120C | ||||
|
output |
DC voltage |
CH1:5V |
CH2:12V |
CH1:5V |
CH2:24V |
CH1:12V |
CH2:24V |
|
Voltage tolerance |
±2% |
+5%~-8% |
±3% |
+6%~-8% |
±3% |
+7%~-8% | |
|
Rated current |
12A |
5A |
6A |
4A |
5A |
2.5A | |
|
Current range |
2~12A |
0.5~5A |
1~6A |
0.4~4A |
1~5A |
0.4~2.5A | |
|
Rated power |
120W |
126W |
120W | ||||
|
Ripple&noise |
80mvp-p |
120mvp-p |
80mvp-p |
150mvp-p |
120mvp-p |
150mvp-p | |
|
DCvoltage ADJ.range |
CH1:-9%~+10% | ||||||
|
input |
Voltage range |
90~132VAC/180~264VAC(selected by switch)，255~373VDC | |||||
|
frequency |
47~63HZ | ||||||
|
AC current |
2.8A/115VAC，1.6A/230VAC | ||||||
|
efficiency |
78% |
80% |
81% | ||||
|
Inrush current |
Cold start current 25A/115VAC，50A/230VAC | ||||||
|
Leakage current |
< 3.5mA/240VAC | ||||||
|
protection |
overload |
Rated output power110%~150 start over load protection | |||||
|
protection type：cutoff output，recovery after restart power | |||||||
|
over voltage |
CH1:115~135% | ||||||
|
protection type：cutoff output，recovery after restart power | |||||||
|
environment |
Working temp,humidity |
-10℃~+60℃，20%~90%RH | |||||
|
Storagetemp,humidity |
-20℃~+85℃，10%~95%RH non-condensing | ||||||
|
Withstand vibration |
10~500HZ，2G 10min/1cycle，period for 60 minutes，each axes | ||||||
|
safety |
Withstand voltage |
I/P-O/P：1.5KVAC I/P-FG：1.5KVAC O/P-FG：0.5KVAC | |||||
|
Isolated resistance |
I/P-O/P,I/P-FG,O/P-FG：100M ohms/500VDC | ||||||
|
Fitstandard |
Safety standard |
Fit UL1012 | |||||
|
EMC standard |
符合EN55022，CLASSA | ||||||
|
others |
Dimension |
199*110*50mm (L*W*H) | |||||
|
Weight/packing |
0.85kg/24pcs/21kg/0.043m³/1.51CUFT | ||||||
|
note |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | ||||||
